Part No: #61301L

OVERVIEW

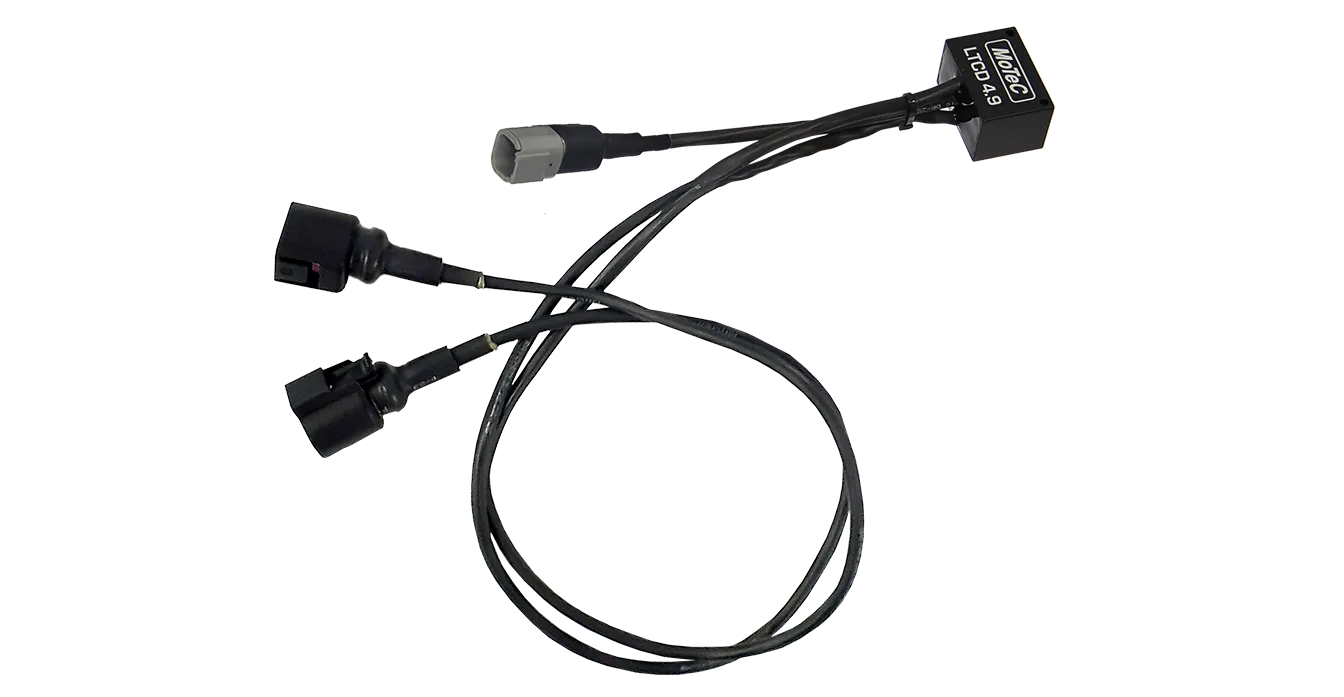

MoTeC's LTCD (Lambda To CAN) is a dual sensor version of the LTC. It monitors, controls and diagnoses two Bosch LSU 4.9 Lambda sensors, transmitting Lambda readings on a CAN bus. When using Dual LTCs, or a mix of singular and Dual LTCs, up to 32 Lambda sensors can be configured on a single CAN bus for simultaneous monitoring by an ECU or logging device.

FEATURES

Provides accurate Lambda measurement, even when exhaust gas temperature is changing rapidly (heating or cooling).
Calibrated by the user for a particular sensor using either the initial sensor factory calibration or the free air calibration.
Pre-configured to suit a single unit installation. If necessary, the configuration can be adjusted; see the Configuration section for more details.
Units marked with a 2 or higher under the barcode are able to transmit extended Lambda values (Rich Lambda).

COMPATIBILITY

MoTeC ECU: M1 Series, M84, M400, M600, M800, M880

MoTeC Display/Loggers: All C Series Display Loggers, ACL, CDL3 (and discontinued models: SDL, SDL3, ADL, ADL2, ADL3)

PC COMMUNICATIONS

A MoTeC gateway device is required to communicate with the LTC on CAN. Such devices include:

M1 Series ECUs
All C Series Display Loggers, ACL, ADL3, SDL3, CDL3
UTC (USB to CAN) #61059

SPECIFICATIONS

Inputs/Outputs

2 x Bosch LSU 4.9 Lambda sensors
Power supply voltage for each sensor: 11 V - 16 V
Power supply current for each sensor: 110 mA typical plus the sensor heater current. Heater current is typically 0.5 A - 1 A and up to 2 A on startup.

Communications

1 x CAN - using LTC Manager, configurable to:
125 Kbps, 250 Kbps, 500 Kbps or 1 Mbps

Physical

Dimensions: 38 x 26 x 23.5 mm, excluding wiring looms and connectors
Weight: 131 g
1 x 4 pin male DTM connector (power/CAN)
2 x mating connectors for Bosch LSU 4.9 sensor
Maximum ambient temperature: 100 °C

SOFTWARE

For multiple installations, LTC Manager software allows all units to be simultaneously managed and diagnosed.

The software is used to:

Configure and calibrate all units on the CAN bus
Display readings and diagnostics
Configure CAN transmission addresses
Control free air sensor calibration
Update unit firmware

CONFIGURATION

MoTeC LTCDs come pre-configured to suit a single LTCD unit installation. By default, the initial factory sensor calibration is used and the following CAN addresses:

Sensor 1 – 460

Sensor 2 – 461

It is only necessary to use LTC Manager if installing multiple LTC units, or if changes to the default settings are required.

DIMENSIONS AND MOUNTING

All dimensions in mm.

CONNECTOR PINOUTS

Connector A (and B for Dual version)

Bosch LSU 4.9 sensor connector

Mating connector: supplied on sensor

Pin	Wire Colour	Description
1	Red	Ip
2	Yellow	Sensor 0 V
3	White	Heater –
4	Grey	Heater +
5	Green	Ipr
6	Black	Vs

Power/CAN Connector

DTM 4 Pin (M) (#68055)

Mating connector: DTM 4 Pin (F) #68054

Pin	Wire Colour	Description
1	Black	Battery –
2	Green	CAN Lo
3	White	CAN Hi
4	Red	Battery +

WIRING

To power the LTC, connect to either the ignition switch for fast sensor startup or the fuel pump relay to prevent accidental battery drainage.

Wiring example

For information on wiring a CAN bus with several LTCs and any number of other CAN devices (as per the example), refer to the relevant device manual.
